Description:

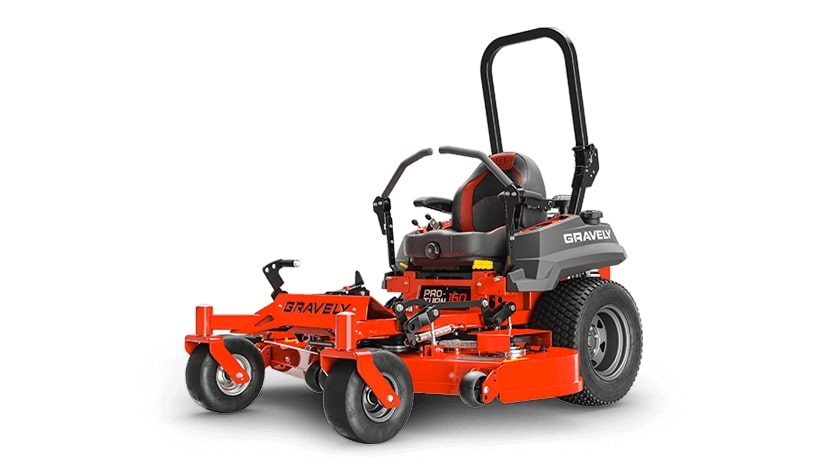

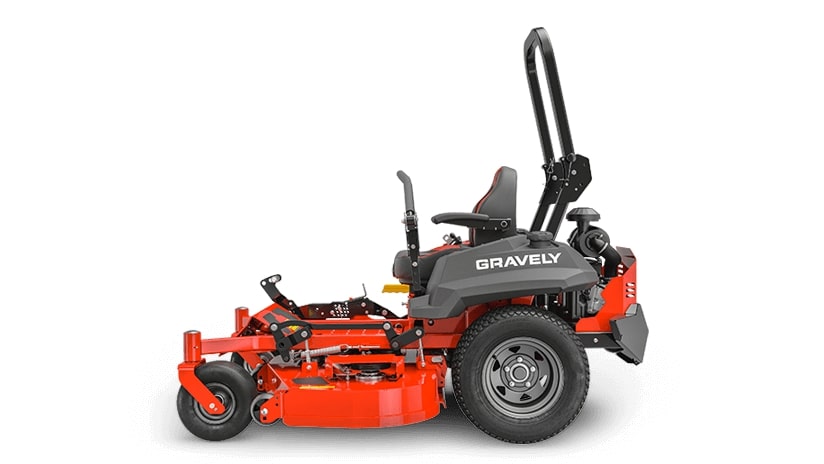

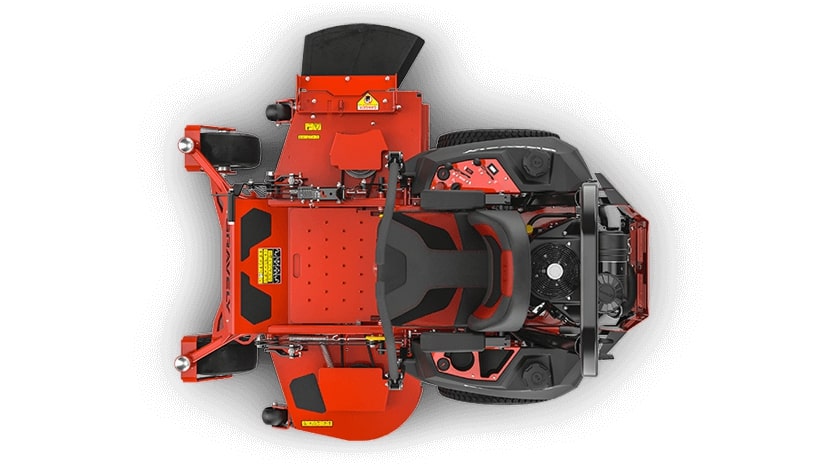

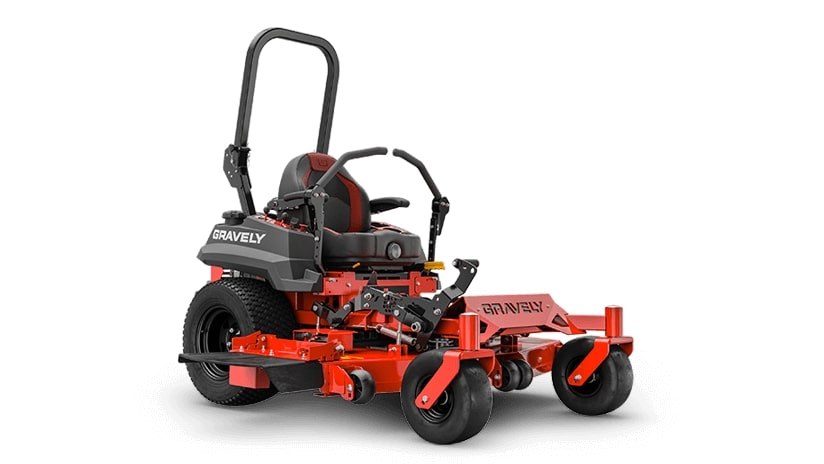

Put your best foot forward with the power and performance of the PRO-TURN 100.

Every inch is of value on the PRO-TURN 100. Packed with Gravely brand’s time-tested features, this hard-working mower stands up to your toughest jobs.

Specifications:

Engine & Power

• Engine: Kawasaki® FX730V
• Horsepower: 23.5 HP
• Engine Displacement: 44.3 in³ / 726 cc
• Fuel System: Gas
• Fuel Capacity: 10 gal / 37.9 ltr

Drive System

• Drive System: Hydro-Gear® ZT-3400 Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Lever Activated Parking

Performance

• Driver Position: Sit
• Ground Speed Forward: 10 mph / 16.1 kph
• Ground Speed Reverse: 5 mph / 8 kph

Wheels

• Front Wheels: 13.0 x 6.5 in (33.0 x 16.5 cm)
• Rear Wheels: 23.0 x 10.5 in (58.4 x 26.7 cm)
• Front Wheel Track: Not Specified
• Rear Wheel Track: Not Specified

Electric System

• Battery Capacity: 300 CCA
• Battery Type: Lead Acid - Maintenance Free
• Battery Size: U1

Deck

• Deck Size: 60 in / 152.4 cm
• Coverage Hour: 6 acres / 2.4 hectares
• Deck Material: 7 ga
• Deck Construction: Fabricated X-Factor® II
• Discharge Configuration: Side
• Cutting Height Min: 1 in / 2.5 cm
• Cutting Height Max: 5 in / 12.7 cm
• Cutting Width: 60 in / 152.4 cm

Dimensions

• Weight (Assembled): 1121 lb / 508.5 kg
• Length: 78.5 in / 199.4 cm
• Width: 60 in / 152.4 cm
• Width (Chute Up): 63 in / 160 cm
• Width (Chute Down): 75 in / 190.5 cm
