Description:

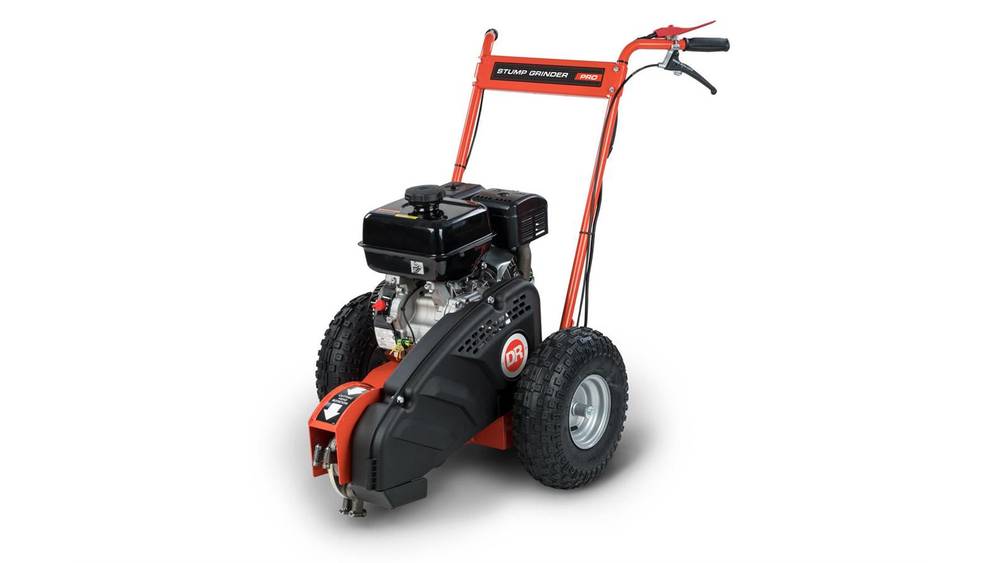

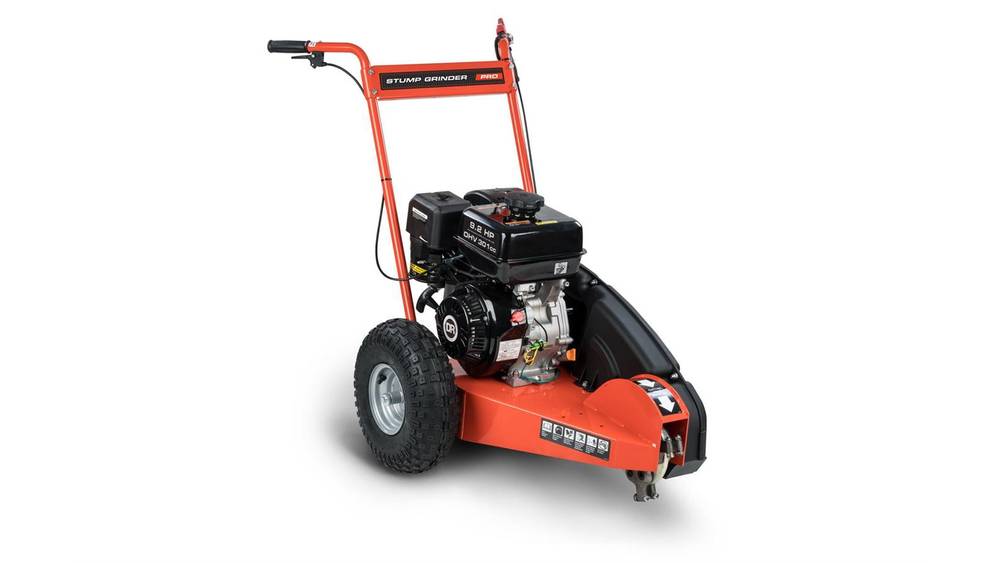

The easiest, fastest method of stump removal! The PRO Stump Grinder demolishes any sized stump, even tough hardwoods, in just minutes. With 8 carbide-tipped teeth and a world-class 9.2 HP (15.3 ft-lbs gross torque*) DR engine, this machine is ready to take out any stump.

Features:

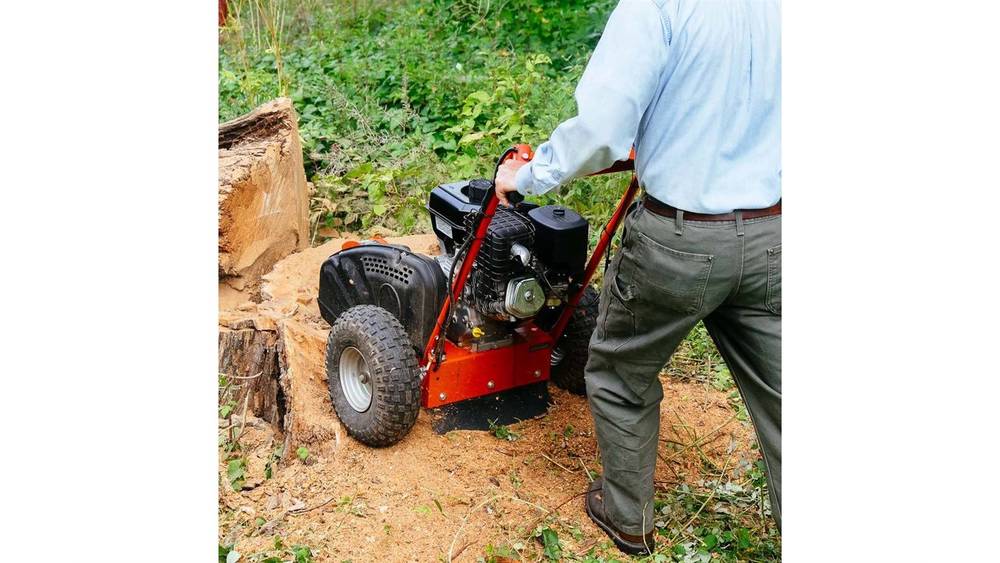

• Simple Operation: Position the DR Stump Grinder over a stump, lock one wheel in place with the wheel brake, engage the cutting head, and pivot easily from side to side, shaving off an inch or so with each pass. Reposition the machine and repeat until the entire stump is reduced to a pile of wood chips.
• Oversized tires roll over rough terrain: These lugged high-flotation tires make for easy transport and give the machine full support during operation. Large size (15" x 4.75") helps to keep machine elevated over wood chips during operation.
• Mining-grade teeth: The cutter head features 8 steel teeth that are tipped with mining-grade tungsten carbide a material 10 times harder than steel and which is used for drilling through bedrock. Spinning at 2800 rpm, these teeth take a remarkable 360 "bites" per second!
• Engine: Our DR OHV engine with 9.2 HP (15.3 ft-lbs gross torque*) has the muscle to power through hardwood stumps of any size. Available with choice of manual- or electric starting.
• Simple hand controls: Control the wheel brakes and engine throttle right from the handle bars. Lock one wheel in place while you pivot the machine back and forth to grind away a stump. Unlock and reposition as needed, right from your working position.

Specifications:

Clutch

• Clutch: Yes

Cutting

• Number of Teeth: 8
• Tooth RPM: 2800

Dimensions

• Handlebar Height: Adjustable at 33", 37", 40"
• Height: 39"
• Length: 51"
• Shipping Weight: 213 lbs
• Weight: 148 lbs
• Width: 29"
• Shipping Dimensions: 54.75"L x 35.5"W x 45.25"H

Engine

• Air Filter: Paper
• Cooling Methods: Air
• Displacement: 301 cc
• Engine Shaft Diameter: 1"
• Engine Type: OHV
• Ft Lbs Torque: *15.3 ft-lbs gross torque (per SAE J1940)
• Horsepower: 9.2 HP
• Lubrication: Splash
• Make: DR
• Number Of Cylinders: 1
• Oil Capacity: 37 oz
• Oil Filter: No
• Oil Type: 30W HD
• Pre Cleaner: Yes
• Starting Type: Manual
• Choke/Primer: Choke

Fuel System

• Fuel Capacity: 3.2 Qrts
• Fuel Shutoff Valve: Yes

General

• CARB Certified: Yes
• Assembly: Yes
• Optimized Using FEA For Strength: Yes

Wheels Tires

• Brake: Yes
• Dimensions: 15" x 4.75"
• Number of Tires: 2
• Tire Size: 15" x 4.75"
• Tread: Saw Tooth
• Wheel Brake with Lock: Yes

Warranty

• Engine Warranty: 2 yrs Residential Use / 90 days Commercial
• Machine Warranty: 2 yrs Residential Use / 90 days Commercial

Material

• Cutting Blade Material: Replaceable carbide tipped teeth
• Frame: 12 gauge
• Grease Fittings: Yes
• Handlebar Style: Height adjustable (with tools) 33", 37", 40"
