Description

A Superior Cut Coupled With Superior Comfort.

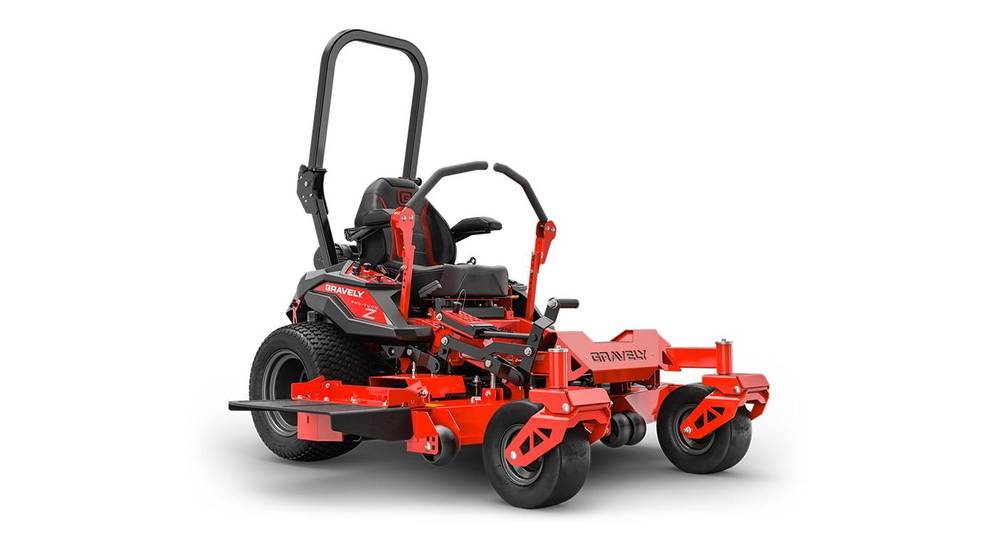

All-day comfort matters just as much as leaving a perfectly cut lawn. The Pro-Turn® Z delivers both. It's packed with commercial-grade features while staying true to its attractive baseline price. And on top of all that, it maintains Gravely's signature durability.

Features

• Suspension Forks: Absorb those big impacts so your body doesn’t, further improving the ride and decreasing fatigue.
• Seat Isolation: Enjoy an improved ride thanks to its seat isolation system. It removes the vibrations that can cause fatigue so you can mow in comfort further and longer.
• Kawasaki FS Engine: The FS series is a compact powerhouse engineered to master mid-duty jobs. Smooth starts, enhanced airflow, cool-running power, and more help them run smooth with less debris buildup.

Accessories

• Powered Grass Bagging System 2-Bin - 6.3 Bushels: Save time, energy and money by keeping your lawn free of grass clippings, leaving it well manicured cut after cut.. Part Number: 89100800.
• Operator Controlled Discharge Baffle: Operator Controlled Discharge Baffle. Part Number: 79223700.
• Mulching Kit - 48 in.: This specialized, non-discharging baffle and blade kit recuts grass clippings into a fine mulch, eliminating cleanup time and returning rich nutrients back to your soil for a naturally lush lawn.. Part Number: 79109600.
• LED Headlight Kit: Mow longer, later, and safer with a headlight kit from Gravely. These blazing LEDs illuminate your cutting path in low-light conditions as dusk approaches.. Part Number: 79108600.
• Hitch Kit: Turn your mower into a multitasking machine. With a towing capacity of 500 pounds, this easy-to-install, heavy-duty steel hitch pulls trailers, spreaders, rollers, dethatchers and more.. Part Number: 79108500.
• Floor Mat: This rubber mat gives an aesthetic upgrade to your machine, but more importantly helps to improve operator comfort by dampening the effect of sound and vibration felt in the feet.. Part Number: 79110600.
• Lawn Striping Kit: That crisp, crosshatched look isn't just for baseball diamonds. Gravely's striping kit allows you to give your lawn that professional, well-manicured look you've always wanted.. Part Number: 79221800.
• Sunshade Kit - ROPS Mounted: This sunshade kit helps to keep you, the operator protected from the sun and other elements, which allows you to stay comfortable while maintaining your lawn.. Part Number: 79212600.
• Hard-Top Sunshade: Stay cool and protected with our hard-top sunshade. This kit features a strong, steel bracket system and a UV-resistant canopy that folds easily for transport and storage.. Part Number: 79218000.
• Gravely Full Suspension Seat Kit: Dial in comfort with a replacement, full-suspension seat that softens bumps, reduces fatigue and extends workdays.. Part Number: 79110400.
• Kit, 13" Front Tweel Caster: Part Number: 79110900
• Rear Tweel Tire Kit: Upgrade your Gravely mower with a commercial tweel kit. These airless, run-flat tires help to minimize your downtime, and cushion your ride by dampening the effect of uneven terrain. This kit fits Gravely PT-EV models.. Part Number: 79702900.
• Semi-Pneumatic Tire Kit: Gravely semi-pneumatic tires are constructed with a thick, puncture-resistant rubber to cushion bumps and protect against flats, downtime and extra expenses.. Part Number: 79703400.

Model Number

• Model Number: 991283

Power Train

• Engine: Kawasaki® FS691V
• Horsepower: 23
• Engine Displacement: 44.3 in / 726 cc
• Fuel System: Gas
• Fuel Capacity: 5.1 gal / 19.3 ltr
• Drive System: Hydro-Gear® ZT-3100® Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Lever Activated Parking
• Driver Position: Sit
• Ground Speed Forward: 8 mph / 12.9 kph
• Ground Speed Reverse: 4 mph / 6.4 kph
• Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm)
• Wheels Rear: 22.0 x 10.0 in - 12.0 in (55.9 x 25.4 cm - 30.5 cm)

Electric

• Battery Capacity: 190 CCA
• Battery Type: AGM
• Battery Size: U1 Compatible

Deck

• Deck Size: 52 in / 132.1 cm
• Coverage Hour: 4.2 acres / 1.7 hectares
• Deck Material: 7 ga
• Deck Construction: Fabricated X-Factor® 3
• Discharge Configuration: Side
• Cutting Height Min: 1.5 in / 3.8 cm
• Cutting Height Max: 5 in / 12.7 cm
• Cutting Width: 52 in / 132.1 cm

Dimensions

• Weight (Assembled): 931 lb / 422.2 kg
• Length: 79 In / 200.7 cm
• Width (Chute Up): 56.2 in / 142.7 cm
• Width (Chute Down): 67.3 in / 170.9 cm
